Securplumb WRAS Flanged Tank Connector

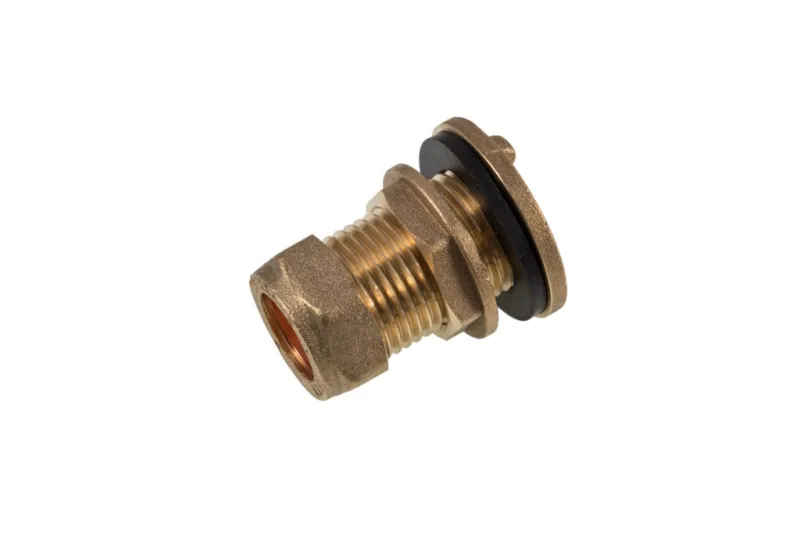

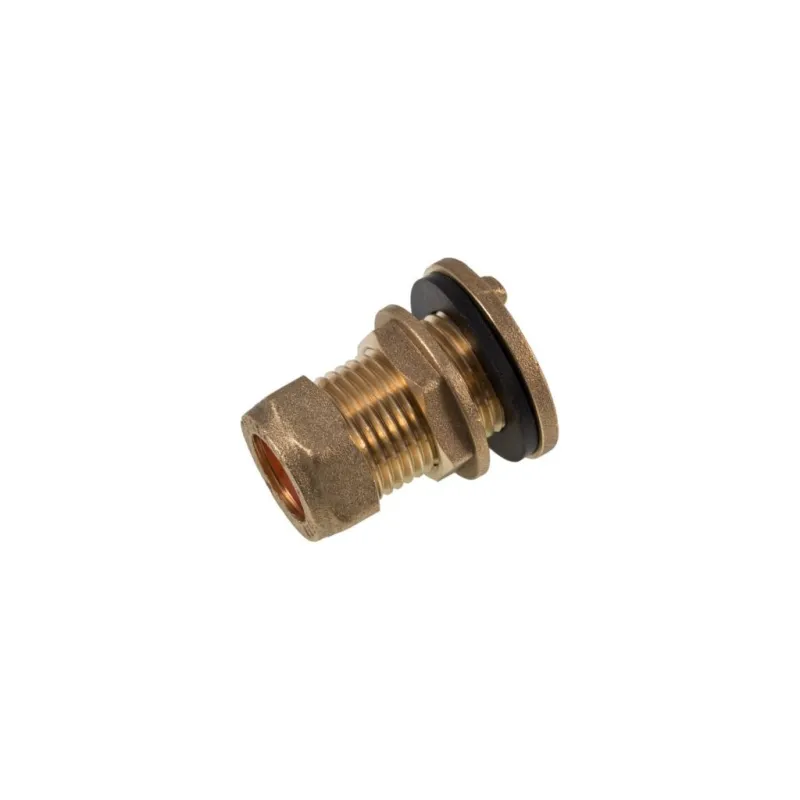

Securplumb WRAS Flanged Tank Connector – 15mm & 22mm

Reliable WRAS-Approved Tank Fitting for Cold Water Storage Systems

The Securplumb WRAS Flanged Tank Connector is a high-quality fitting designed to create a secure, watertight connection between pipework and a water storage tank or cistern. Available in both 15mm and 22mm sizes, this flanged connector is ideal for cold water storage systems, expansion tanks, and rainwater harvesting units where durability, compliance, and reliability are essential.

Fully approved by the Water Regulations Advisory Scheme (WRAS), this tank connector meets UK regulations for use in potable water systems, offering peace of mind and long-term performance in domestic, commercial, and industrial plumbing installations.

Product Variants & Weights

• 15mm Flanged Tank Connector
  Boxed Weight: 85g

• 22mm Flanged Tank Connector
  Boxed Weight: 150g

Key Features & Benefits

✔ WRAS Approved for Use in Potable Water Systems

These connectors meet strict WRAS standards, ensuring suitability for use in cold water tanks supplying drinking water. Compliance with national regulations makes them suitable for a wide range of building and plumbing applications.

✔ Flanged Design for Secure Installation

The integral flange ensures a broad surface area for compression against the inner tank wall. This allows the use of a washer and backnut to form a tight, leak-resistant seal.

✔ Robust and Durable Construction

Made from high-quality, corrosion-resistant materials, Securplumb flanged connectors provide long-term performance and are ideal for use in cold water and rainwater tanks.

✔ Versatile Sizing Options

Available in both 15mm and 22mm sizes, these connectors are compatible with standard pipework and can be integrated into both new builds and retrofit systems.

✔ Quick and Easy Installation

Designed with the installer in mind, the flanged tank connector is simple to fit using basic plumbing tools. It ensures fast connection between tank outlets and supply pipes.

Typical Applications

• Cold water storage tanks (e.g., loft tanks)

• Feed and expansion tanks

• Rainwater collection tanks

• Break tanks and buffer vessels

• Any system requiring WRAS-compliant fittings for potable water

Installation Instructions

1. Prepare Tank Wall: Mark and cut a hole to the required diameter for the connector.

2. Position Flanged Connector: Insert the connector through the hole from the inside of the tank. Ensure that the supplied sealing washer is in place on the flange side.

3. Secure with Backnut: From the outside of the tank, thread the backnut onto the connector and tighten firmly to compress the seal.

4. Attach Pipework: Connect pipework to the outlet side using compression fittings or soldering, depending on system requirements.

5. Check for Leaks: Fill the tank and check all joints and seals under pressure.

Tip: Always flush the system before final installation to remove debris that could damage the sealing washer or internal pipework.

Maintenance Advice

• Inspect Annually: Check the seal and surrounding area for any signs of weeping, scaling, or corrosion.

• Replace Washer as Needed: If the seal shows wear or cracking, replace the washer to maintain water-tight performance.

• Tighten Backnut If Necessary: Over time, the backnut may loosen due to temperature changes or movement. Re-tighten gently if needed.

Frequently Asked Questions (FAQs)

Q: Are these connectors suitable for hot water tanks?
These fittings are designed specifically for cold water storage. For hot water or pressurised systems, use connectors rated for high-temperature and pressure.

Q: Can these be used with plastic tanks?
Yes. These connectors are compatible with both plastic and metal tanks. Ensure the surface is clean and flat to support a proper seal.

Q: Is sealant required on installation?
In most cases, the integral washer provides a sufficient seal. Additional sealant is typically not required but may be used if specified by local regulations or in cases of slight surface imperfections.

Q: What tools are needed for installation?
Installation can be completed using basic spanners or adjustable wrenches. Always avoid overtightening to protect the tank and fitting.
