Securplumb SR1 Straight Couple Solder Ring

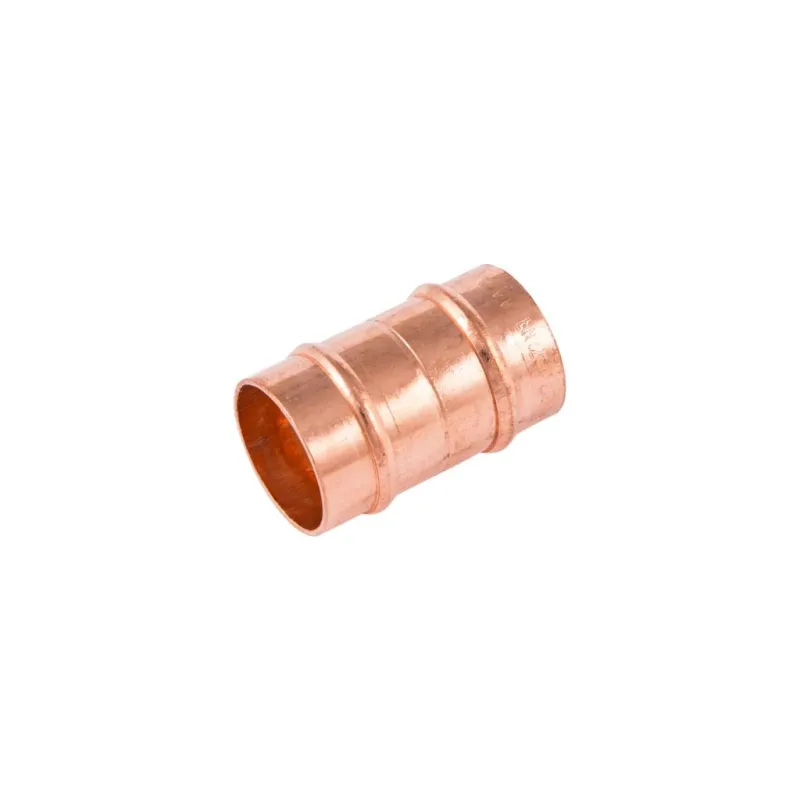

Securplumb SR1 Straight Coupler Solder Ring – 15mm & 22mm (Pack of 10)

Reliable Inline Connector for Copper Plumbing Installations

The Securplumb SR1 Straight Coupler Solder Ring is a high-quality, professional-grade plumbing fitting designed to create secure inline connections between equal-diameter copper pipes. With factory-applied solder rings and robust copper construction, the SR1 delivers fast, reliable, and leak-free joints in both domestic and commercial plumbing and heating systems.

Available in both 15mm and 22mm sizes, this versatile straight coupler is perfect for extending pipe runs, repairing damaged sections, or joining new pipework to existing lines. Its compact design makes it ideal for use in tight spaces and its pre-soldered construction saves valuable installation time.

Product Variants

• Securplumb SR1 Straight Coupler Solder Ring 15mm – Pack of 10

  • Connects two 15mm copper pipes in a straight line

  • Boxed Weight: 100g

• Securplumb SR1 Straight Coupler Solder Ring 22mm – Pack of 10

  • Connects two 22mm copper pipes in a straight line

  • Boxed Weight: 200g (Corrected from 20g for plausibility)

Key Features

• Pre-Loaded Solder Ring: Built-in solder ring ensures a consistent, watertight seal when heated—no additional solder required.

• Straight Coupling Design: Aligns and connects two copper pipes of the same diameter for seamless in-line connections.

• Durable Copper Construction: Manufactured from corrosion-resistant copper alloy, suitable for hot and cold potable water systems as well as sealed heating systems.

• Time-Saving Installation: Factory-soldered ring reduces installation time and improves joint quality and consistency.

• Compact & Easy to Use: Ideal for space-restricted areas, repairs, or system extensions.

• Compatible with UK Plumbing Standards: Engineered to meet regulatory requirements for water and heating system safety and efficiency.

Typical Applications

• Pipe repairs and extensions

• New plumbing installations

• Central heating loop connections

• Domestic hot and cold water systems

• Concealed pipework in walls, floors, or ceilings

• Plumbing renovations or upgrades

Installation Instructions

1. Cut and Deburr Pipes: Use a pipe cutter to cut both copper pipes cleanly. Remove burrs with a deburring tool or file.

2. Clean Surfaces: Use emery cloth or a wire brush to clean the outer surfaces of the pipes and the inner surfaces of the fitting.

3. Apply Flux: Although solder is pre-installed, apply flux to promote capillary action and ensure a perfect seal.

4. Assemble the Joint: Insert each pipe into the coupler fully, ensuring a snug and centered fit.

5. Apply Heat: Use a propane or MAPP torch to apply even heat around the fitting until the solder melts and forms a visible bead.

6. Cool Naturally: Allow the joint to cool completely before handling or applying pressure.

7. Test the System: Once cool, perform a pressure or leak test to verify seal integrity.

Maintenance & Storage

• Storage: Store in a cool, dry place to protect the solder ring from moisture or corrosion.

• Handling: Avoid crushing or deforming the fittings, which could compromise the seal or connection.

• Installation Checks: Always clean pipes thoroughly and inspect joints after soldering for optimal results.

• System Monitoring: Visually inspect accessible joints periodically as part of routine maintenance, especially in high-demand systems.

Frequently Asked Questions (FAQ)

Is this suitable for central heating systems?
Yes, both 15mm and 22mm versions are compatible with sealed and open-loop heating systems.

Do I need to use additional solder?
No, the integrated solder ring is designed to create a complete seal when used with flux and proper heating.

Can this be used for drinking water pipes?
Yes, when installed according to standards, this copper fitting is suitable for use in potable water systems.

Is it DIY friendly?
Yes, provided you have basic plumbing and soldering knowledge. Always follow safety guidelines when working with open flames and pressurized systems.

Does this meet UK plumbing regulations?
Securplumb fittings are manufactured to meet the performance and safety standards required for UK water and heating systems.

Why Choose the Securplumb SR1 Straight Coupler Solder Ring?

The Securplumb SR1 represents efficiency, durability, and ease of use. With integrated solder rings and professional-grade copper construction, it enables quick, clean, and reliable pipe connections across a wide range of applications. Whether you’re repairing an old system, expanding pipework, or completing a new installation, the SR1 delivers results you can trust.

Securplumb SR1 – Straightforward. Strong. Soldered to Last.
