Securplumb Compression Isolating Valve 15mm x 15mm

Product Overview:

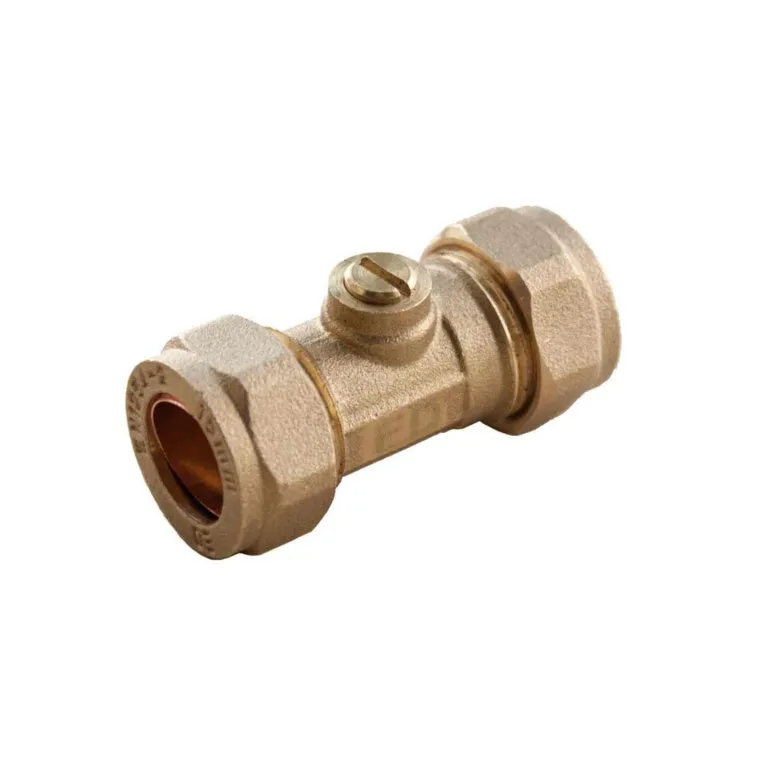

The Securplumb Compression Isolating Valve 15mm x 15mm is a compact, robust valve designed to control and isolate water flow in plumbing systems with 15mm copper or compatible plastic pipes. Featuring compression fittings on both ends, this valve provides a reliable, tool-free installation without the need for soldering or threading.

Ideal for maintenance, repair, or emergency shut-off situations, this isolating valve allows for the localised control of water flow to taps, toilets, washing machines, dishwashers, and other appliances. It is a critical component for both domestic and commercial plumbing systems, ensuring minimal disruption during repairs or upgrades.

Product Specifications:

• Product Type: Compression Isolating Valve

• Connection Size: 15mm x 15mm

• Connection Type: Compression ends (suitable for copper or plastic pipe – use inserts with plastic)

• Material: Durable nickel-plated brass body

• Control Mechanism: Slot-head screw for manual on/off operation

• Boxed Weight: 75g

• Usage: Cold or hot water systems (not suitable for gas)

• Installation Orientation: Horizontal or vertical

Key Features:

• Easy to Operate: Simple quarter-turn screw slot mechanism enables fast isolation of water flow

• Tool-Free Installation: Compression fittings eliminate the need for soldering, making installation quick and clean

• Durable Construction: Brass body with corrosion-resistant nickel plating ensures long service life

• Versatile Placement: Can be fitted on hot or cold water lines in bathrooms, kitchens, and utility areas

• Maintenance Friendly: Allows localized shut-off for servicing taps, appliances, or fixtures without turning off the main supply

Typical Applications:

• Isolating water supply to taps, sinks, toilets, or appliances

• Emergency shut-off for maintenance or repair

• Plumbing installations in kitchens, bathrooms, and utility rooms

• Commercial and domestic water supply systems

Installation Instructions:

1. Prepare the Pipe: Cut the 15mm copper or plastic pipe squarely and remove any burrs.

2. Fit Compression Ends: Slide the compression nuts and olives onto each pipe. Insert pipe ends into the valve.

3. Tighten: Using two spanners, tighten the compression nuts to compress the olives and form a watertight seal.

4. Check Operation: Use a flat-head screwdriver to rotate the slot screw and test the open/closed functionality.

5. Test for Leaks: Turn on the water supply and inspect all joints and the valve for any signs of leakage.

Care and Maintenance:

• Regular Checks: Periodically inspect for signs of corrosion, leaks, or wear, especially in hard water areas.

• Turn Periodically: Operate the valve occasionally to prevent seizing or stiffness, especially if used infrequently.

• Replace When Needed: If the valve fails to fully stop flow or becomes stiff, it should be replaced.

Frequently Asked Questions (FAQ):

Q1: Can this valve be used for both hot and cold water?
Yes, it is suitable for both hot and cold potable water systems.

Q2: Can I install this with plastic pipe?
Yes, but you must use appropriate pipe inserts with plastic pipe for a secure and leak-free connection.

Q3: Is this valve suitable for use with central heating systems?
While it can handle hot water, it’s typically used for domestic water lines rather than pressurised heating circuits.

Q4: Does the valve provide full bore flow?
No, isolating valves like this typically restrict flow slightly; for full bore, a specific full-bore valve should be used.

Conclusion:

The Securplumb Compression Isolating Valve 15mm x 15mm offers a practical, user-friendly solution for controlling water flow in household and light commercial plumbing systems. Its reliable compression fit, durable construction, and ease of operation make it a go-to component for both professional installers and DIY users seeking to add convenience and safety to any water supply setup.
