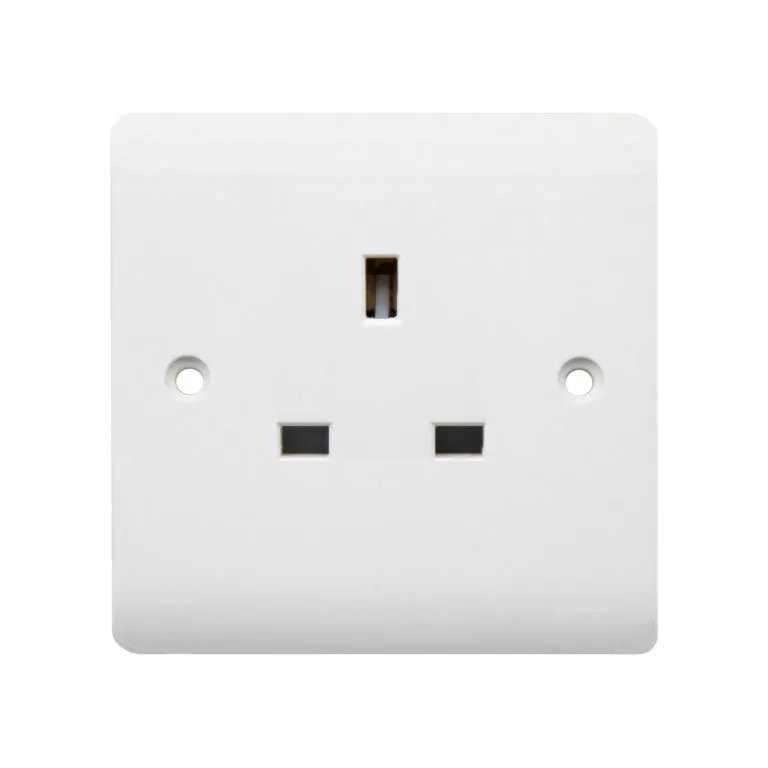

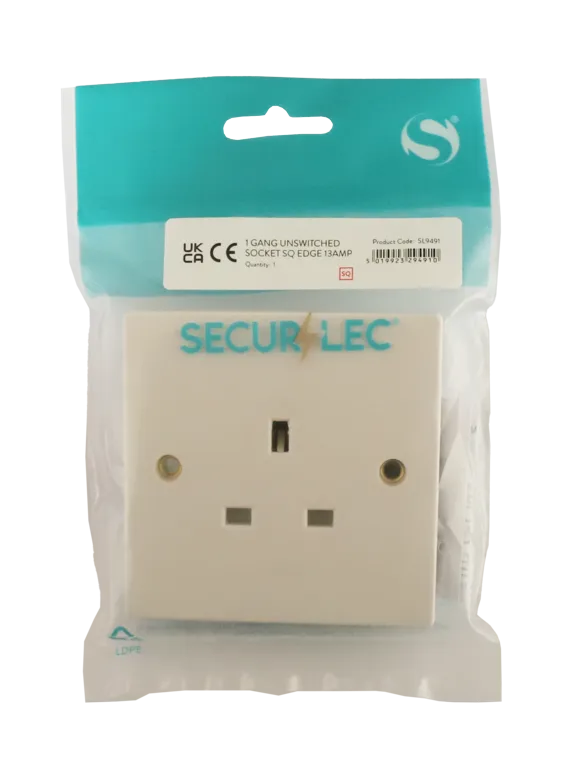

Securlec Square 1 Gang Socket

The Securlec 1 Gang Unswitched Socket is a robust and reliable electrical outlet designed for both domestic and commercial use. Available in both square edge and round edge faceplate options, this socket provides versatility in aesthetic preference while maintaining high functionality.

Built to comply with BS 1363-2 standards, this 13 Amp socket ensures safe and efficient power supply. The unit features heavily embossed terminal markings for easy identification and large angled terminals for fast, hassle-free wiring. Designed with dual earth terminals and double pole switching, it offers enhanced safety and electrical performance.

With a compact 86mm x 86mm size and contoured edges, it blends seamlessly into walls for a clean, modern look.

Key Features:

Standard Size: 86 x 86mm to fit standard UK wall boxes
Rated for 13 Amp / 250V AC power supply
Double Pole Switching for improved safety by isolating both live and neutral
Heavily Embossed Terminal Markings for clear and error-free wiring
Top Access & Large Angled Terminals make installation faster and easier
Dual Earth Terminals to ensure reliable grounding connections
Fixing Screws Retained by Earth Strap to prevent loss during installation
Single Screwdriver Size Needed simplifying the installation toolkit
Faceplate Material: Durable urea-formaldehyde with smooth finish
Contoured Design: Neatly blends with wall surface
Installation Depth: Suitable for wall boxes ≥ 25mm deep
IP20 Protection: Suitable for indoor, dry environments
Max Installation Altitude: Up to 2000 meters

Technical Specifications:

Specification	Details
Product Type	1 Gang Unswitched Socket
Faceplate Options	Square Edge / Round Edge
Dimensions (WxHxD)	86 x 86 x 8.5 mm
Rated Voltage	250V AC
Rated Current	13 Amp
Frequency	50–60 Hz
Terminal Capacity	3 x 2.5mm² or 2 x 4mm² or 1 x 6mm²
Fixing Screws	M3.5 x 30mm
Material	Urea-Formaldehyde
Operating Temperature	-5°C to 40°C (24h avg. ≤ 25°C)
Protection Rating	IP20
Standards Compliance	BS 1363-2
Installation Altitude	Up to 2000 meters

Frequently Asked Questions (FAQ):

Q: What is the difference between the square edge and round edge models?
A: The difference is primarily aesthetic. Both models have identical technical specifications and functionality; the edge design matches different style preferences.

Q: Can this socket be used outdoors?
A: No, this socket has an IP20 rating and is designed for indoor use only in dry environments.

Q: What type of wiring does the socket support?
A: It supports terminal capacities of 3 x 2.5mm², 2 x 4mm², or 1 x 6mm² wiring.

Q: Is installation straightforward for a qualified electrician?
A: Yes, the socket features large angled terminals and top access, which make wiring faster and easier. Only one size screwdriver is required.

Q: What does double pole switching mean?
A: Double pole switching isolates both live and neutral connections when the socket is off, providing enhanced safety.

Warranty Information:

The Securlec 1 Gang Unswitched Socket is backed by a 1-year limited warranty covering manufacturing defects and faults under normal use and installation. Warranty does not cover damage caused by misuse, improper installation, or external factors.

For warranty support, retain your proof of purchase and contact the retailer or Securlec customer service.
