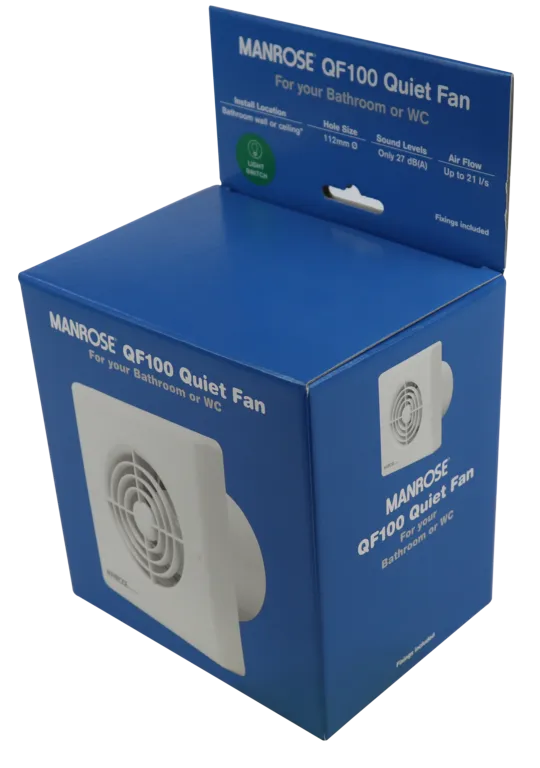

Manrose Quiet Standard Model 100mm

The Manrose Quiet Standard Model 100mm (4″) offers high-performance ventilation with whisper-quiet operation. Engineered for domestic spaces like bathrooms, toilets, and utility rooms, this extractor fan delivers effective airflow while producing significantly less noise than conventional fans.

At just 27dB(A) at 3 metres, it is up to 60% quieter than standard axial fans, making it ideal for noise-sensitive areas. Despite its quiet operation, the unit offers an impressive extraction rate of 85m³/hr (23 litres/second), ensuring efficient removal of moisture, odours, and humidity.

This Standard model is designed for connection to a separate switch, such as a wall switch or lighting circuit, and does not include a built-in timer.

Key Features & Benefits

Ultra-Quiet Operation
Operates at just 27 decibels, ensuring minimal disruption in bedrooms, bathrooms, and other quiet spaces.
Effective Airflow
Capable of extracting 85m³/hr (23 litres/second), meeting UK Building Regulations (Part F) for domestic bathrooms and WCs.
Standard Model
Designed for remote switching, making it ideal for integration with external light switches or control panels.
Wall or Ceiling Mounting
Offers flexibility in installation locations to suit different room layouts.
Energy Efficient
Consumes minimal power while delivering high airflow performance — a great combination for energy-conscious homes.
Discreet Design
Modern low-profile styling in a neutral white finish to suit any interior décor.

Technical Specifications

Attribute	Specification
Model	Quiet Standard Fan
Product Code	(Typically QF100S or similar; confirm as needed)
Duct Size	100mm (4″)
Airflow Rate	85m³/hr (23 litres/second)
Noise Level	27dB(A) @ 3 metres
Mounting Options	Wall or Ceiling
Power Supply	230V AC ~ 50Hz
Motor Rating	7 Watts (approximate)
Material	High-impact ABS plastic
Colour	White
IP Rating	IP24
Operating Temperature	-5°C to +40°C
Regulations Compliance	Part F Building Regulations, CE & UKCA marked

Recommended Applications

Domestic bathrooms and en-suites
Toilets and cloakrooms
Laundry and utility areas
Any room requiring discreet and quiet extraction

Installation Guidance

Switch-Controlled Operation – Connect to a wall or pull-cord switch.
Suitable for wall or ceiling mounting using standard 100mm (4″) ducting.
Ensure the fan is installed in compliance with local electrical regulations.
Optional backdraught shutters or grilles can be added depending on airflow direction and placement.

FAQs

Q: Does this fan have a built-in timer?
A: No, this is the standard model and requires external switching. For a version with an overrun timer, see the Manrose Quiet Timer Model.

Q: Can I use this in a bathroom?
A: Yes, it is suitable for bathrooms if installed outside splash zones (or within Zones 1/2 with RCD protection).

Q: Is it compatible with flexible ducting?
A: Yes, it connects with all standard 100mm (4″) ducting and fittings.

Q: Is this fan suitable for ceiling mounting?
A: Absolutely, it is designed for both wall and ceiling applications.

Warranty & Aftercare

Manufacturer Warranty: 3-year standard warranty from Manrose
Motor Lifespan: Rated for 30,000 hours of continuous use
Maintenance:
- Clean external surfaces and grilles as needed
- Check airflow periodically to ensure ducts are not blocked
- Always disconnect power before maintenance

Why Choose the Manrose Quiet Fan Series?

For over 30 years, Manrose has led the UK ventilation market with a focus on reliability, energy efficiency, and ease of use. The Quiet Standard 100mm fan is a premium solution for homeowners seeking peace, performance, and dependable air quality control — all in a slimline, unobtrusive design.
