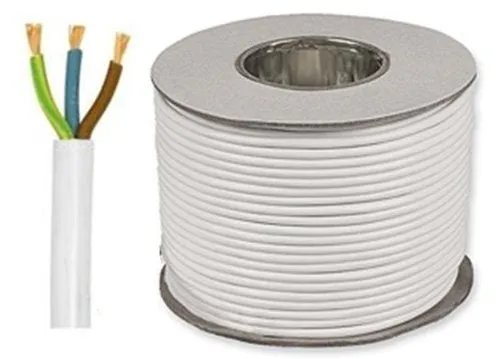

Lyvia 3183Y White Cable

The Lyvia 3183Y 3-Core Flexible Cable is a premium-quality electrical cable designed for domestic and light commercial applications. With a cross-sectional area of 1.5mm² per conductor, this cable is ideal for medium-load connections such as lighting, heating controls, and portable appliances. Supplied in a convenient 50-metre coil, the cable is housed in a robust white PVC sheath for added durability and a clean appearance.

Whether you’re rewiring appliances, extending circuits, or working on renovation projects, the Lyvia 3183Y cable offers safe and flexible performance in compliance with UK electrical standards.

Key Features:

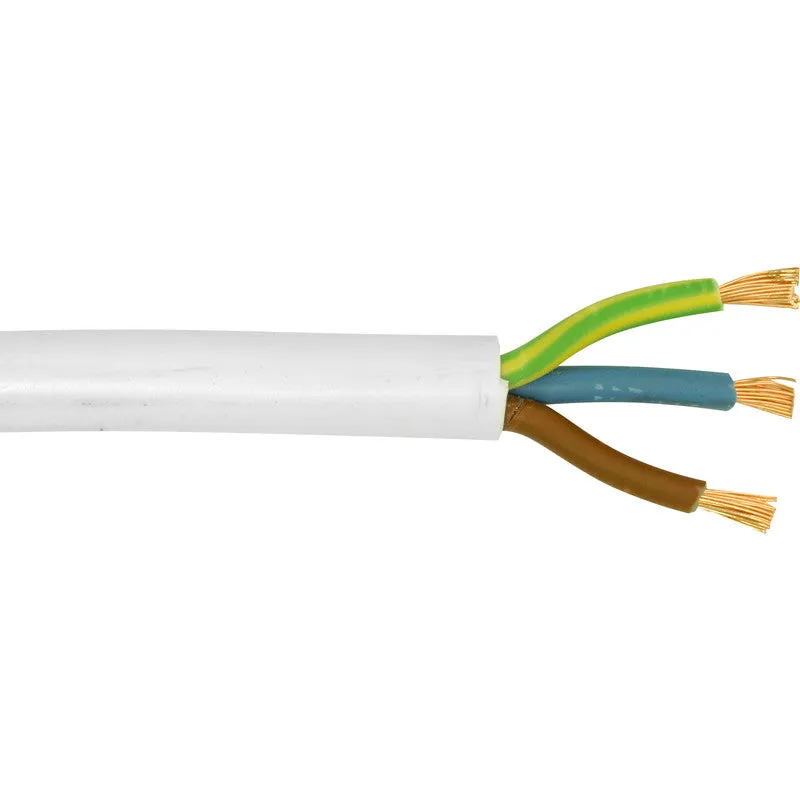

Flexible 3-Core Cable: Includes brown (live), blue (neutral), and green/yellow (earth) cores for complete circuit protection.
1.5mm² Core Size: Suitable for medium-current circuits such as heating systems, lighting spurs, and appliances.
50 Metre Coil: Long continuous length reduces waste and allows for efficient cable runs.
White PVC Sheath: Flame-retardant and easy to handle, with clear core identification.
Easy to Strip & Terminate: Designed for fast and safe installation by electricians and professionals.
Versatile Applications: Suitable for indoor fixed or portable wiring in domestic and light commercial environments.

Technical Specifications:

Brand: Lyvia
Cable Type: 3183Y (Flexible PVC Cable)
Conductor Count: 3 cores
Conductor Size: 1.5 mm²
Conductor Material: Stranded copper
Insulation Material: PVC (Polyvinyl Chloride)
Sheath Colour: White
Core Colours: Brown (Live), Blue (Neutral), Green/Yellow (Earth)
Voltage Rating: 300/500V
Temperature Rating: -5°C to +70°C (flexing)
Standards: BS EN 50525-2-11
Length: 50 metres
Boxed Weight: 3.8 kg
Commodity Code: 8544200090

Dimensions:

Specification	Measurement
Cable Length	50 metres
Conductor Cross Section	1.5 mm²
Cable Outer Diameter	Approx. 8.5 mm
Boxed Weight	3.8 kg

Note: Outer diameter is approximate and may vary slightly based on manufacturing tolerances.

Applications:

Wiring for electric heaters, immersion heaters, and lighting circuits
Extension leads and power distribution
Low-power kitchen appliances and equipment
Ideal for general purpose indoor wiring (non-buried and non-permanent outdoor installations)

Frequently Asked Questions (FAQ):

Q: Can this cable be used outdoors?
A: This cable is designed for indoor use only. If using outdoors, it must be protected by suitable conduit or trunking and installed by a qualified professional.

Q: What is the maximum current this cable can carry?
A: The 1.5mm² core typically supports up to 15–16 amps, depending on installation method and ambient temperature. Always refer to IET Wiring Regulations (BS 7671) for exact values.

Q: Is the cable suitable for use in ring main circuits?
A: No, ring mains typically require 2.5mm² cable. This 1.5mm² cable is suitable for spurs, lighting, or lower-powered fixed installations.

Q: Are the cores stranded or solid?
A: The conductors are stranded copper for improved flexibility and ease of installation.

Q: Does the cable come on a reel?
A: The 50-metre cable is supplied coiled and boxed for convenient handling and storage.

Warranty Information:

The Lyvia 3183Y 3-Core Cable is covered by a 1-year manufacturer’s warranty, protecting against defects in material or workmanship under normal usage and conditions. Warranty claims must be supported with proof of purchase and do not apply to damage from misuse, improper installation, or exposure to unsuitable environments.
