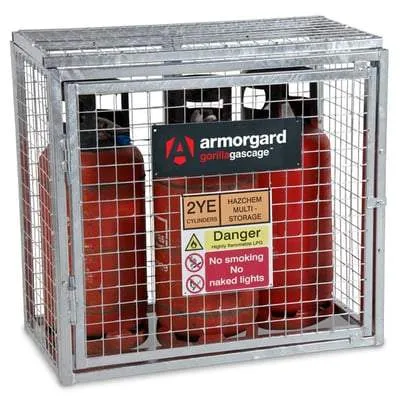

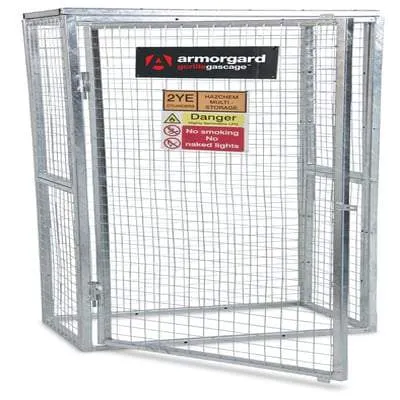

Gorilla Gas Bottle Cages – All Sizes

The unique galvanized security cage specially designed for storing gas cylinders. Robustly constructed using 25mm box sections and 3mm wire mesh, the Gorilla Gas Cage features a unique modular bolt-together design using individual galvanized panels, making it quick and easy to erect and dismantle. Suitable for use on site or in the storage yard, it comes complete and ready to erect with all fixings, and packs flat when not in use.

Model	Size	Product Weight	Internal Dimension
GGC1	1012mm x 563mm x 931mm	40kg	950mm x 500mm x 900mm
GGC3	912mm x 566mm x 1831mm	60kg	850mm x 500mm x 1800mm
GGC4	1212mm x 1266mm x 1231mm	68kg	1150mm x 1200mm x 1200mm
GGC5	912mm x 966mm x 1831mm	67kg	850mm x 900mm x 1800mm
GGC6	1212mm x 1266mm x 1831mm	87kg	1150mm x 1200mm x 1800mm
GGC7	1812mm x 966mm x 1831mm	98kg	1750mm x 900mm x 1800mm
GGC8	1812mm x 1266mm x 1831mm	108kg	1750mm x 1200mm x 1800mm
GGC9	1812mm x 1866mm x 1831mm	135kg	1750mm x 1800mm x 1800mm
GGC10	2412mm x 1866mm x 1831mm	165kg	2350mm x 1800mm x 1800mm
GGC11	2712mm x 1866mm x 1831mm	188kg	2650mm x 1800mm x 1800mm
GGC12	2412mm x 2466mm x 1831mm	182kg	2650mm x 1800mm x 1800mm
GGC13	2412mm x 3666mm x 1831mm	226kg	2350mm x 3600mm x 1800mm
GGC14	2412mm x 4866mm x 1831mm	270kg	2350mm x 4800mm x 1800mm
GGC15	2412mm x 6066mm x 1831mm	314kg	2350mm x 6000mm x 1800mm
GGC16	3612mm x 3666mm x 1831mm	279kg	3555mm x 3600mm x 1800mm
GGC17	3662mm x 1810mm x 1831mm	205kg	3600mm x 1750mm x 1800mm
